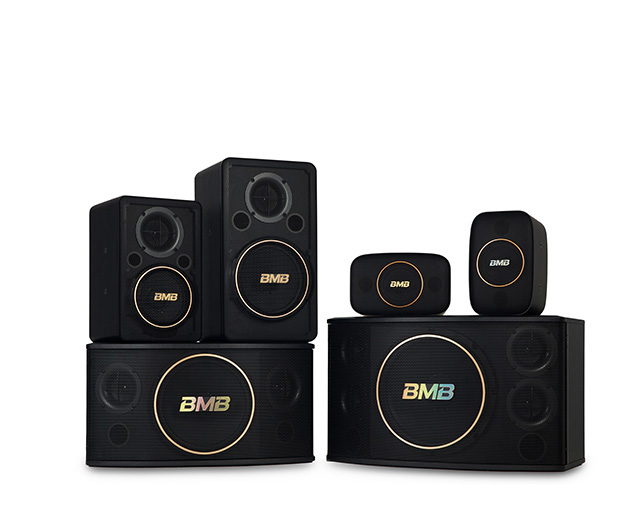

CSJ Series

Compact Karaoke speakers with the title "J" for Japanese sound

Compact speakers are ideal not only for small rooms but also for back/center speakers.

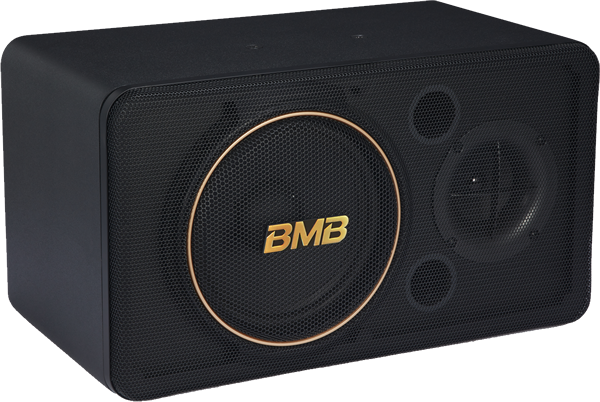

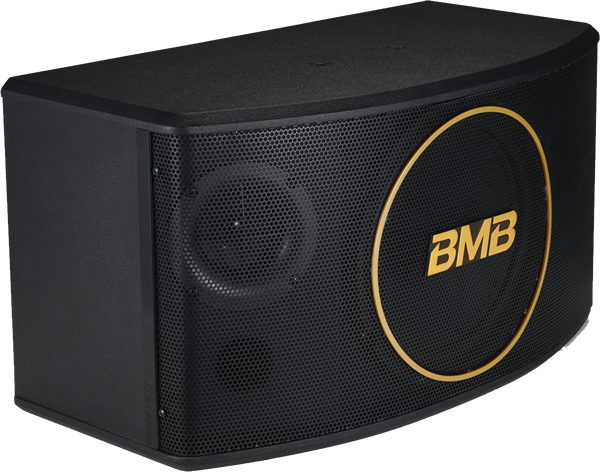

High quality punched-in net speaker panels are designed with a deeply curved form.

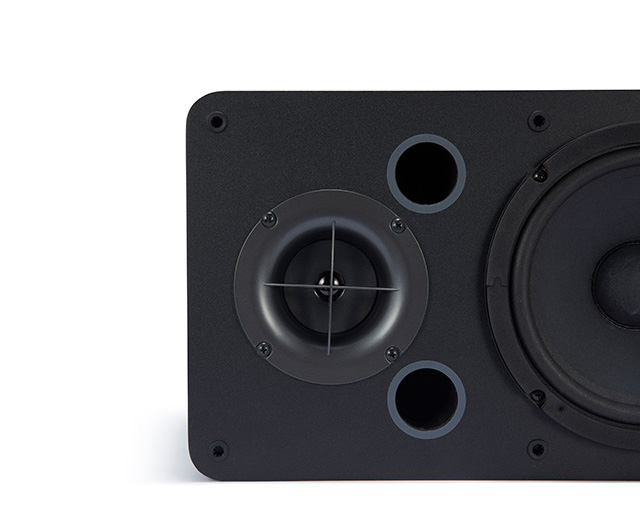

"Tweeter SPL* switch is used to prevent howling.
*SPL- Sound Pressure Level"

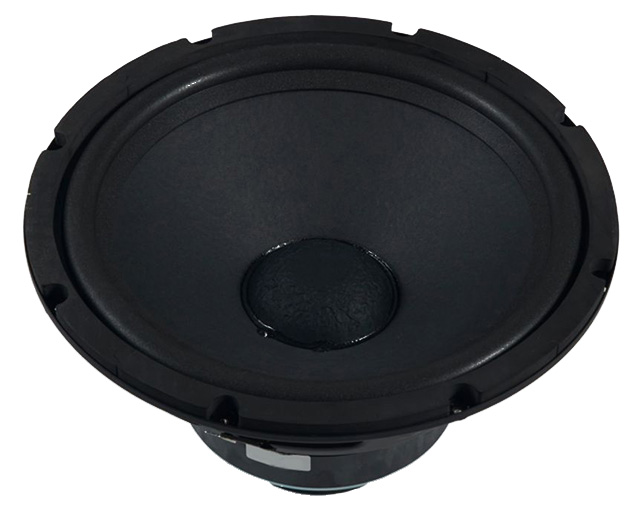

Woofer use highly reliable paper cones made in Japan to achieve high quality sound.

Selling
point

Deeply curved form design

Sound pressure level switch

Highly reliable paper cone Made in Japan

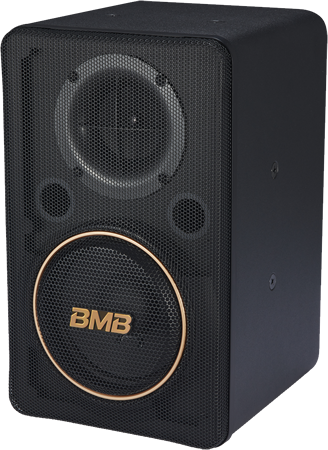

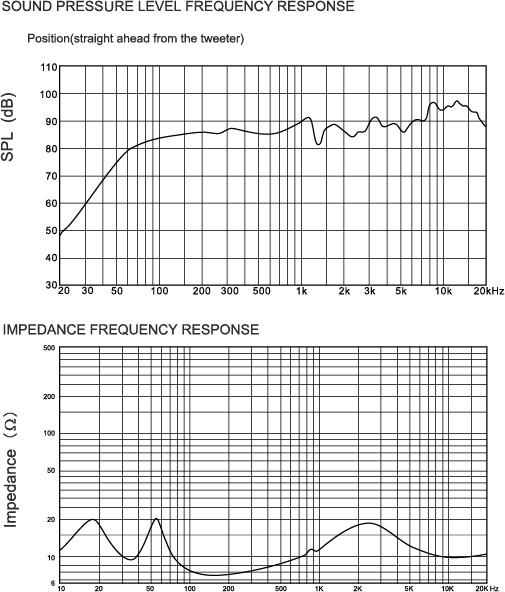

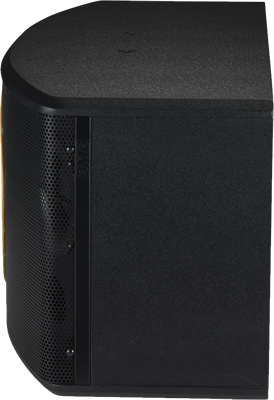

CSJ-06

CSJ-06 [6"]
System
Type		 Two-way two unit speaker system
Frequency
Range(-10dB) *1		 51Hz-20kHz
Frequency
Response(±3dB) *1		 110Hz-20kHz
Sound
Pressure
Level *2		 87dB
Impedance 8Ω
Max Sound Pressure Level *3 109dB
Power
Capacity		 Continuous 80W,Program 160W
Dimensions
(HxWxD)		 351mm x 215mm x 235mm(13.8" x 8.5" x 9.3")
Shipping Dimensions
(HxWxD)		 425mm x290mm x 575mm(16.7" x 11.4" x 22.6")
Net
Weight		 4.2kg (9.3lbs) for one
Shipping
Weight		 12.5kg (27.5lbs) / Pair

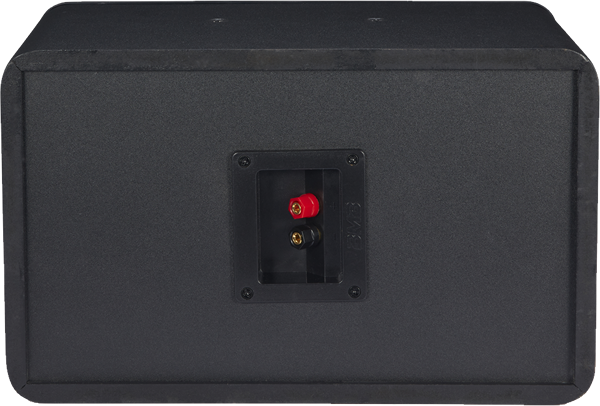

Input

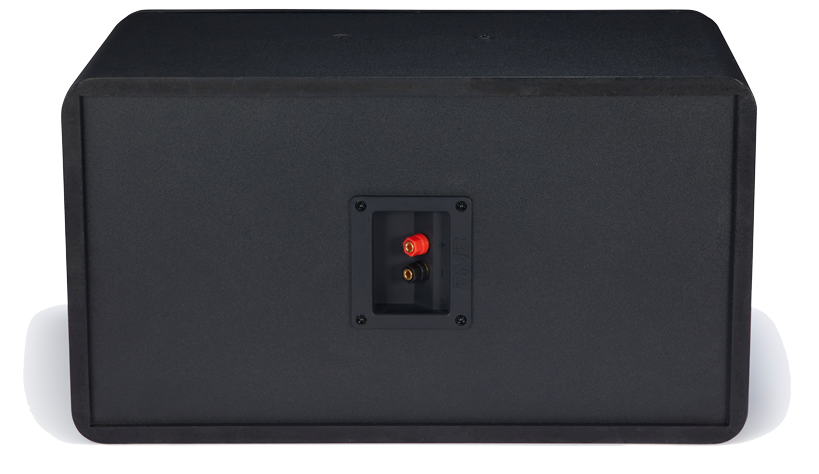

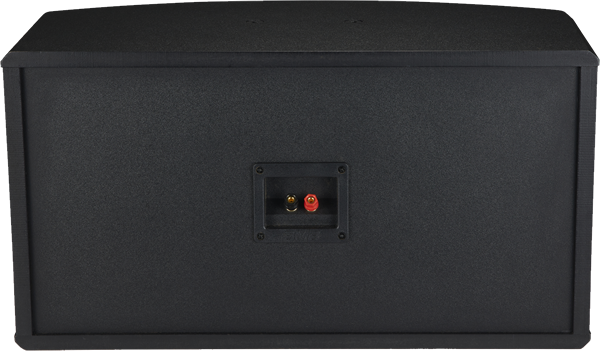

Connectors		 19mm (spacing distance) terminal
LF
Unit		 160mm（6.3"）Cone, 32.5mm（1.3"）Voice Coil x 1
HF
Unit		 70mm（2.8"） Cone, 13.5mm（0.5"）Voice Coil x 1
Enclosure
Construction		 12mm（0.5"）MDF
*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
*3 Calculated

Catalog

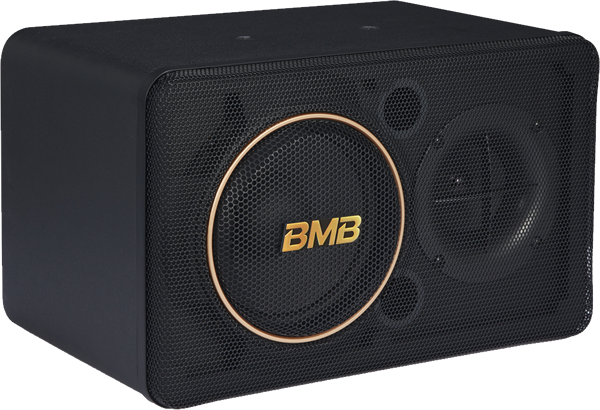

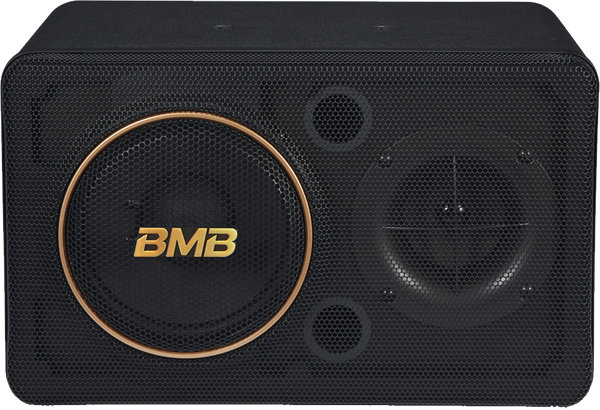

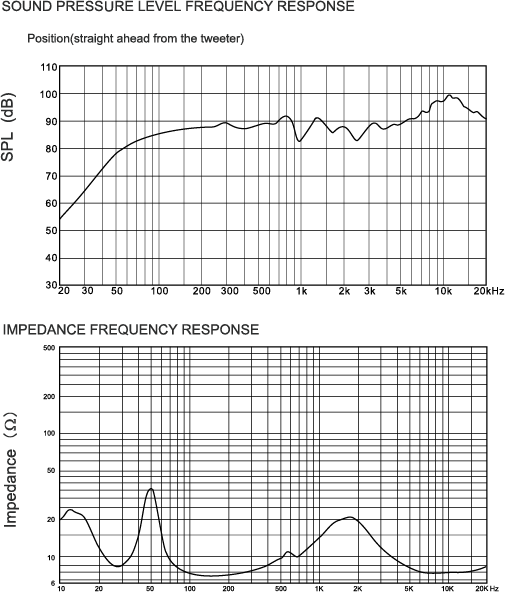

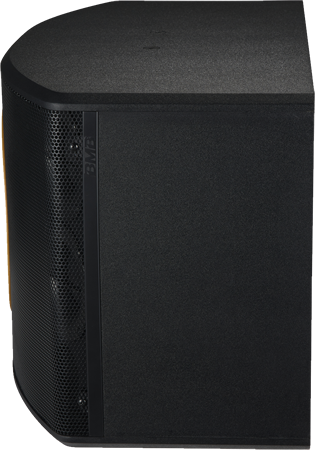

CSJ-08

CSJ-08 [8"]
System
Type		 Two-way two unit speaker system
Frequency
Range(-10dB) *1		 46Hz-20kHz
Frequency
Response(±3dB) *1		 90Hz-20kHz
Sound
Pressure
Level *2		 88dB
Impedance 8Ω
Max Sound Pressure Level *3 112dB
Power
Capacity		 Continuous 120W,Program 240W
Dimensions
(HxWxD)		 451mm x 251mm x 258mm(17.8" x 9.9" x 10.2")
Shipping Dimensions
(HxWxD)		 525mm x 325mm x 600mm(20.7" x 12.8" x 23.6")
Net
Weight		 7.15kg (15.7lbs) for one
Shipping
Weight		 16.5kg (36.3lbs) / Pair
Input
Connectors		 19mm (spacing distance) terminal
LF
Unit		 200mm（7.9"） Cone, 35.5mm（1.4"）Voice Coil x 1
HF
Unit		 70mm（2.8"） Cone, 13.5mm（0.5"）Voice Coil x 1
Enclosure
Construction		 12mm（0.5"）MDF
*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
*3 Calculated

Catalog

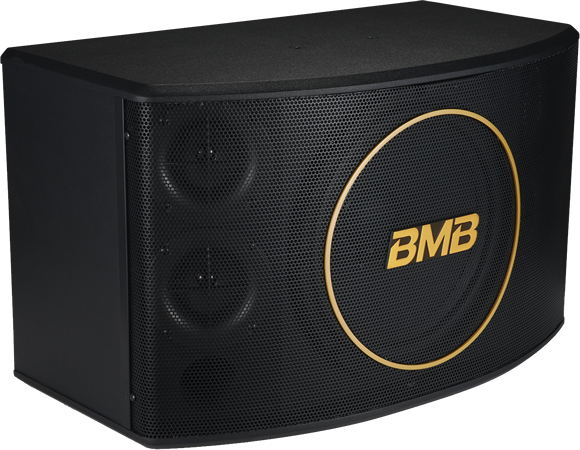

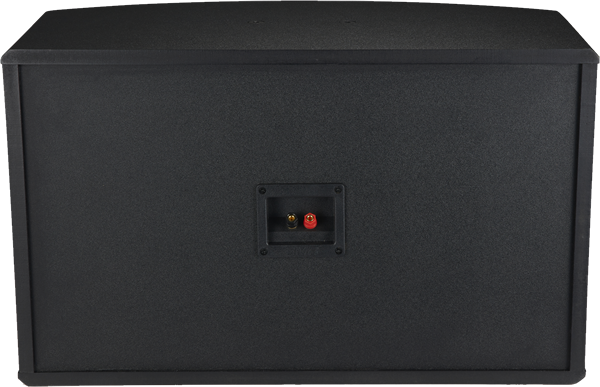

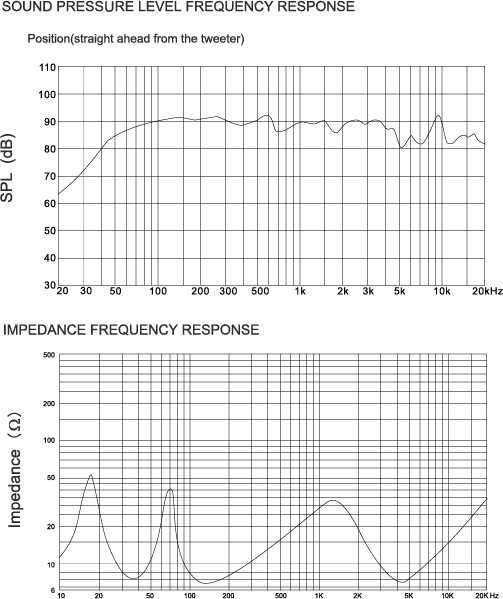

CSJ-10

CSJ-10 [10"]
System
Type		 Two-way three unit speaker system
Frequency
Range(-10dB) *1		 46Hz-20kHz
Frequency
Response(±3dB) *1		 70Hz-20kHz
Sound
Pressure
Level *2		 89dB
Impedance 8Ω
Max Sound Pressure Level *3 115dB
Power
Capacity		 Continuous 250W,Program 500W
Dimensions
(HxWxD)		 296mm x 558mm x 282mm(11.7"x22.0"x11.1")
Shipping Dimensions
(HxWxD)		 390mm x 720mm x 650m(15.4"x28.3"x25.6")
Net
Weight		 12.7kg (28.0lbs) / Each
Shipping
Weight		 28.3kg (63.4lbs) / Pair
Input
Connectors		 19mm (spacing distance) terminal
LF
Unit		 250mm（10"） Cone, 49.5mm（1.95"）Voice Coil x 1
HF
Unit		 70mm（2.8"） Cone, 13.5mm（0.5"）Voice Coil x 2
Enclosure
Construction		 15mm（0.6"）MDF
*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
*3 Calculated

Catalog

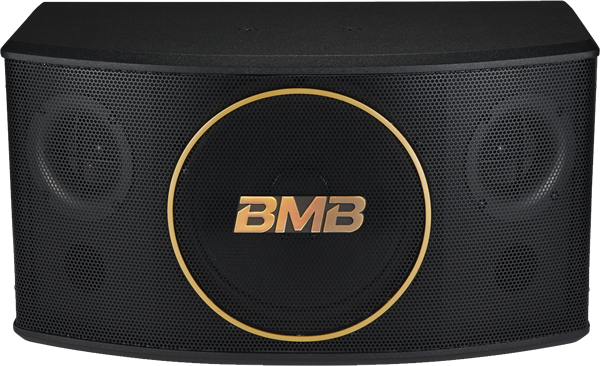

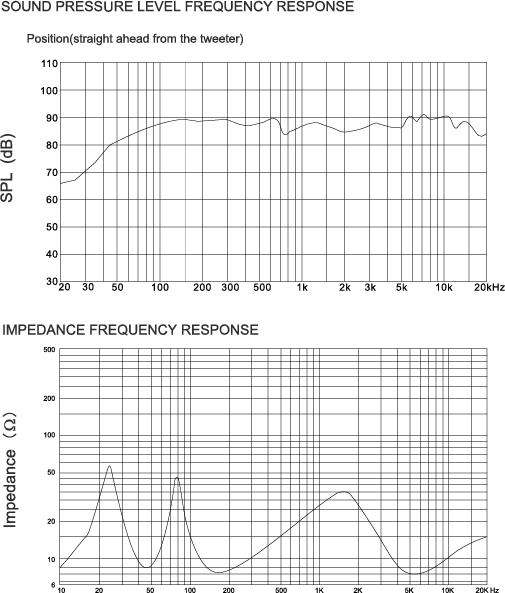

CSJ-12

CSJ-12 [12"]
System
Type		 Two-way five unit speaker system
Frequency
Range(-10dB) *1		 42Hz-20kHz
Frequency
Response(±3dB) *1		 62Hz-20kHz
Sound
Pressure
Level *2		 91dB
Impedance 8Ω
Max Sound Pressure Level *3 117.5dB
Power
Capacity		 Continuous 450W,Program 900W
Dimensions
(HxWxD)		 361mm x 600mm x 332mm(14.2"x23.6"x13.0")
Shipping Dimensions
(HxWxD)		 455mm x 820mm x 695mm(17.9"x 32.3"x 27.4")
Net
Weight		 17.3kg (38.1lbs) / Each
Shipping
Weight		 41.4kg (91.3lbs) / Pair
Input
Connectors		 19mm (spacing distance) terminal
LF
Unit		 305mm（12"） Cone, 65.5mm（2.58"）Voice Coil x 1
HF
Unit		 70mm（2.8"） Cone, 13.5mm（0.5"）Voice Coil x 4
Enclosure
Construction		 15mm（0.6"）MDF
*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
*3 Calculated
